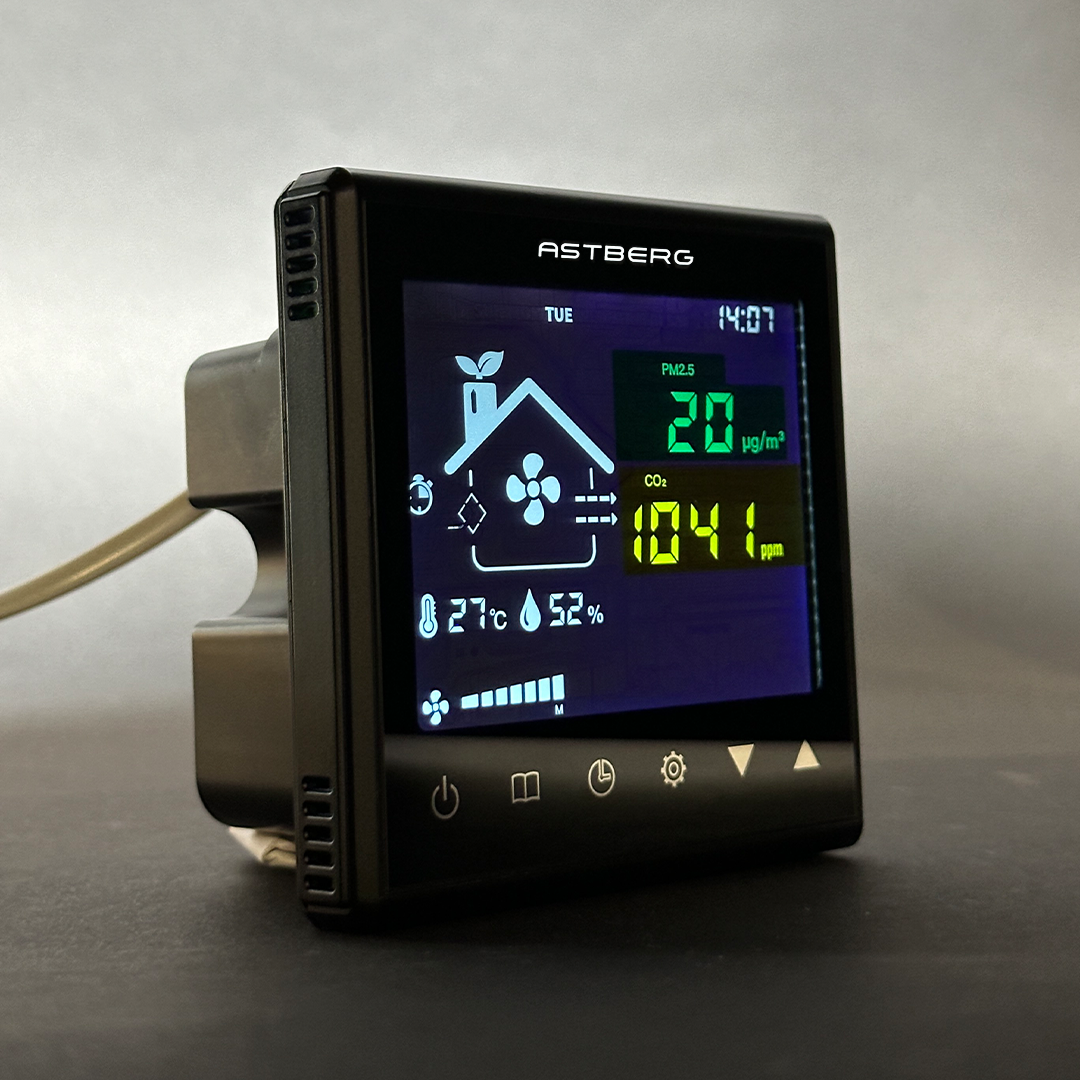

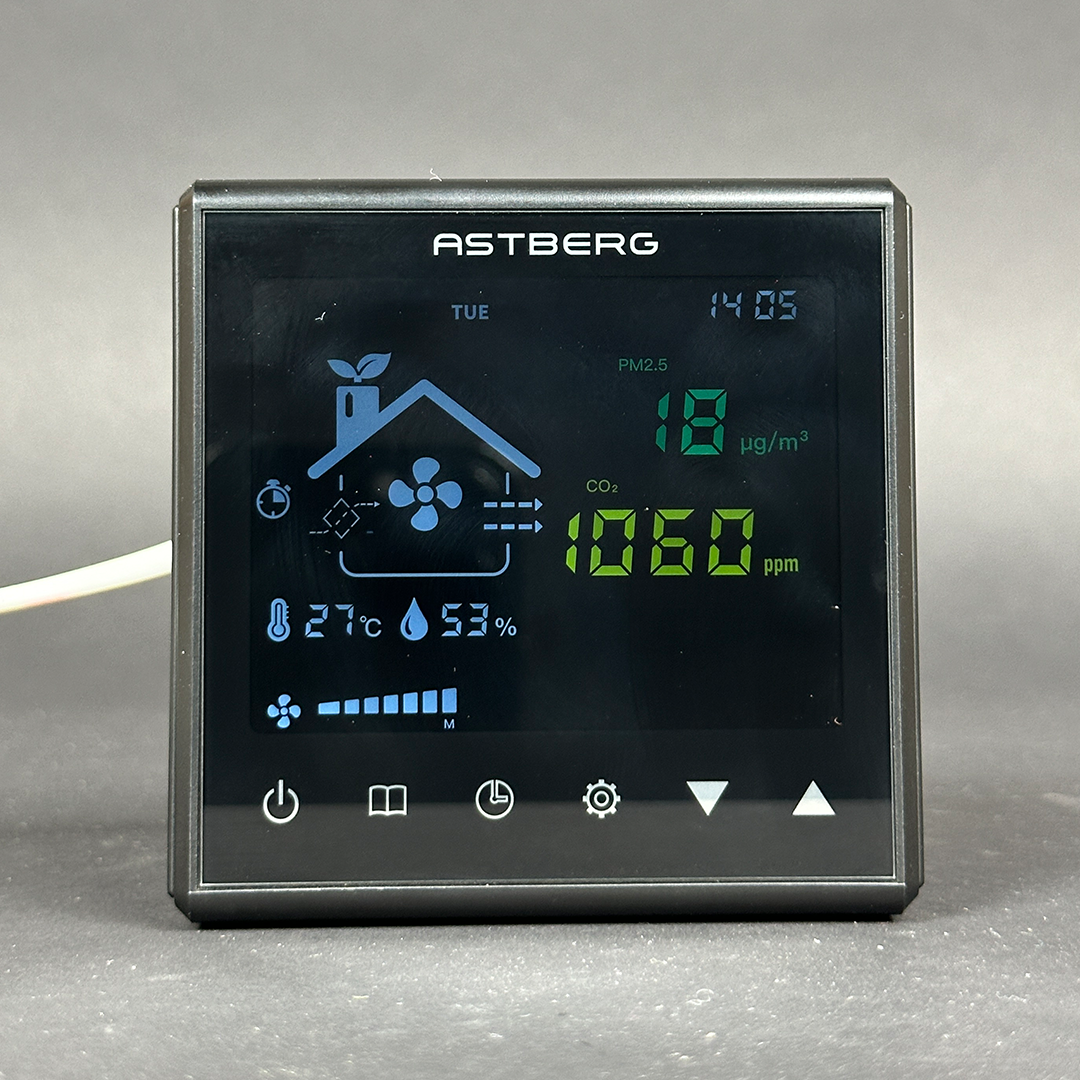

SMART CONTROLLER - G5 (Wifi) FRESH AIR INTELLIGENT CONTROLLER

G5 (Wifi) FRESH AIR INTELLIGENT CONTROLLER

Fresh Air intelligent controller adopts touch key technology, which is flexible and convenient to operate. The built-in sensor of the controller can monitor the indoor temperature, humidity, and CO2 concentration in real time. The output signal of the controller directly controls the startup and speed of the new fan. It can be widely used in residential, commercial and industrial applications, and can effectively improve air quality, create a healthy, comfortable, energy-efficient living and working environment..


Technical parameter:

1.Dimension: 86×86mm
2 Warm-up time: 1 minute
3. Fixing hole distance: 60mm(standard)
4. Response time: ≤10 seconds
5. Wiring terminal: Max 2.5 mm wire
6. Recovery time: ≤30 seconds
7.Rated voltage: AC220V 50Hz
8.Operating temperature: -10°C ---+50°C
9. Standby Power: ≤2.0 W
10. Operating humidity: 5%RH-90%RH (Non condensation)
11. Control power: <200W
12. Storage temperature: -10°C - +60°C
13. Output interface: Three-speed ventilator
14. Storage humidity: ≤60%RH
15. Temperature display range: 0℃-50℃
 16. Life: ≥10 years
