SMART CONTROLLER - 900 D for ERV's

SMART CONTROLLER - 900 D

General Description:

This controller has two working mode such as manual mode and schedule mode. Manual mode allows the customer to adjust speed and switch on-off units manually. It can be connected to WIFI. With the schedule mode, customer can setup different time period for unit to operate.

If customer want to setup controllers , they should follow the instructions given in the Manual.

Technical parameter:

1. Section 4 Technical Parameters
2. Size:- 86×86×40mm
3. Installation Pitch:-60mm
4. Terminal Blocks:- Maximum 2.5 mm²
5. Nominal Voltage: AC220V 50Hz
6. Standby Power: ≤2.0W

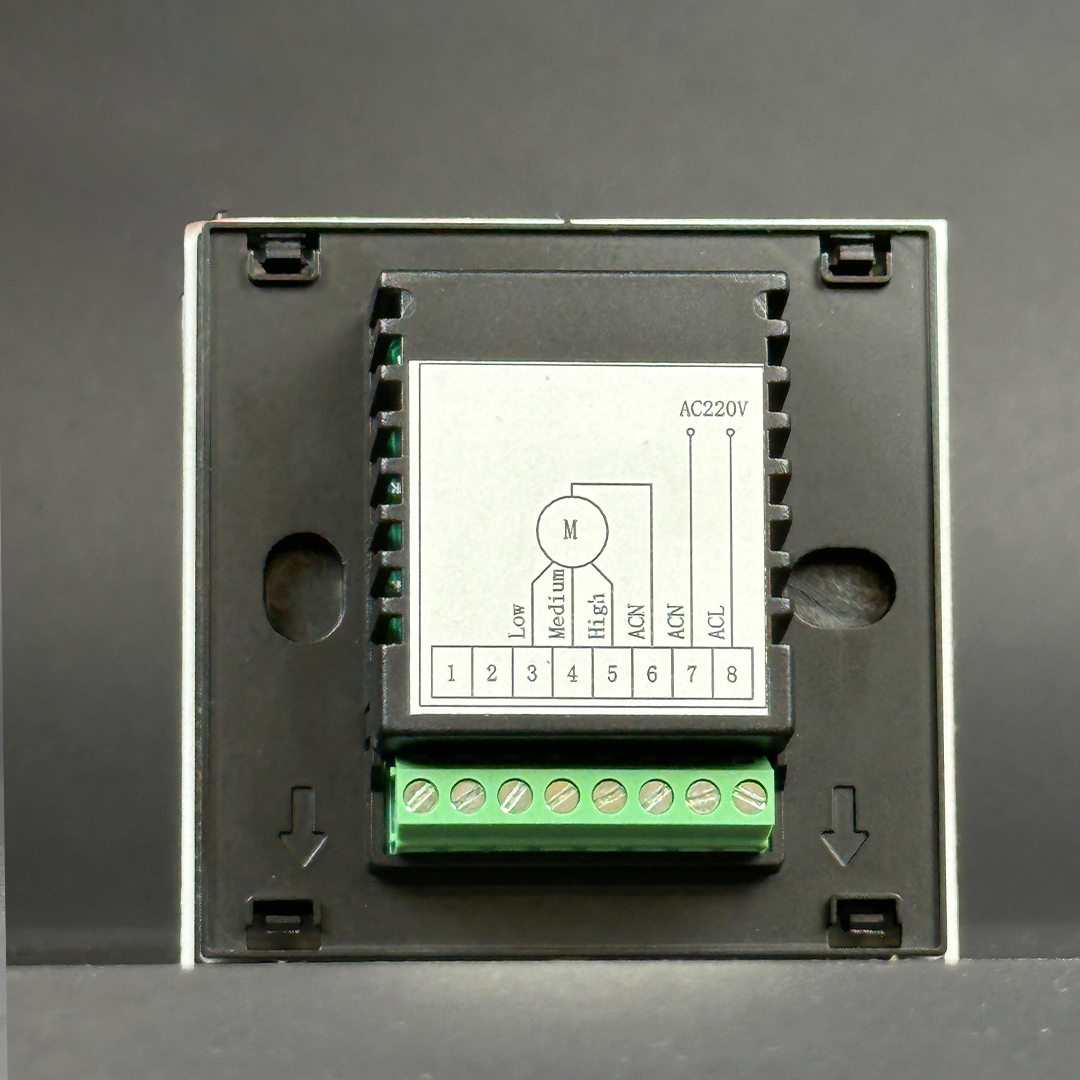

7. Output: Three-speed fan

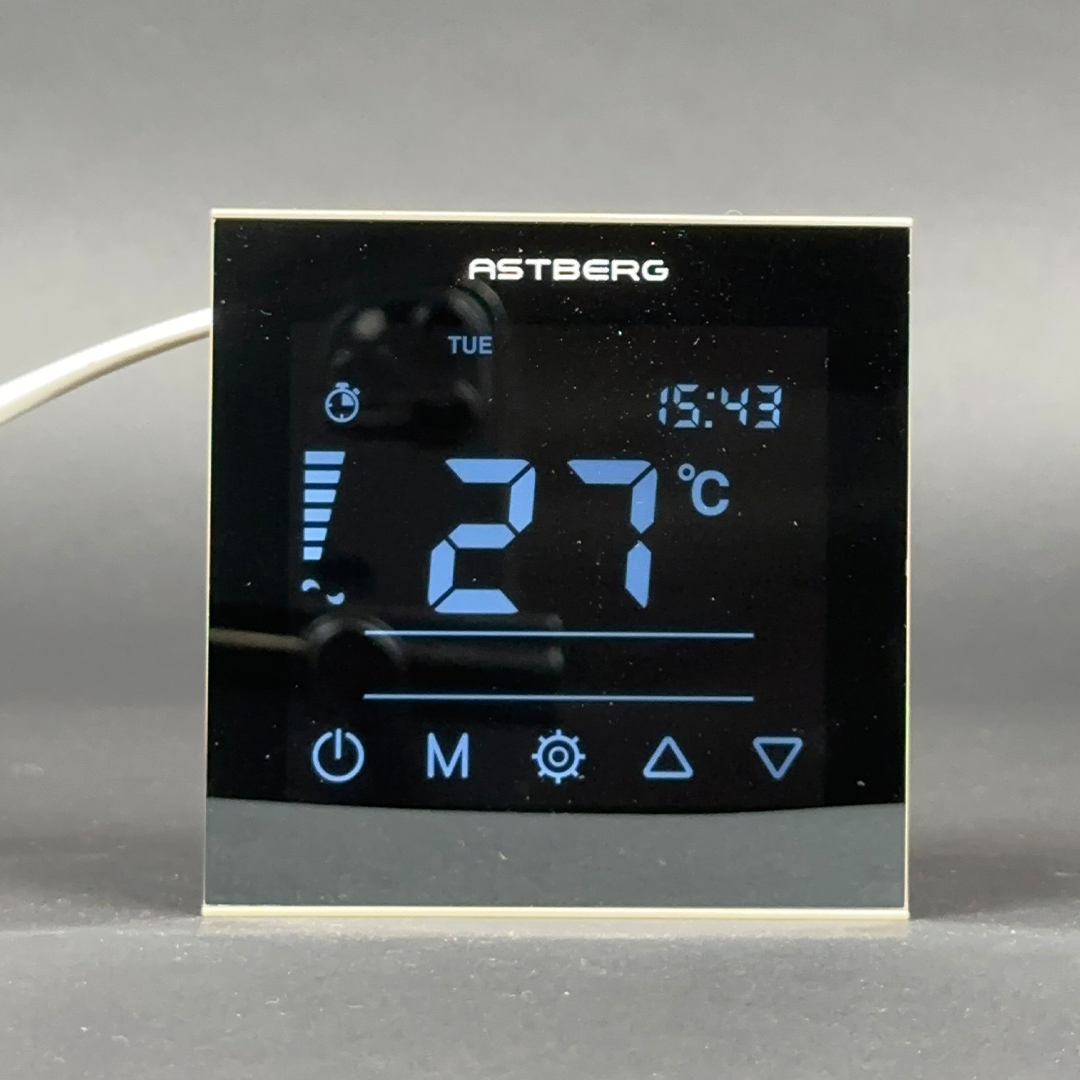

8. Temperature Display Range: 0°C-50°C
9. Working Temperature: -10°C +50°C
10. Working Humidity: 5%RH-90%RH
11. Storage Temperature: -10°C +60°C
12. Storage Temperature: ≤60%RH
