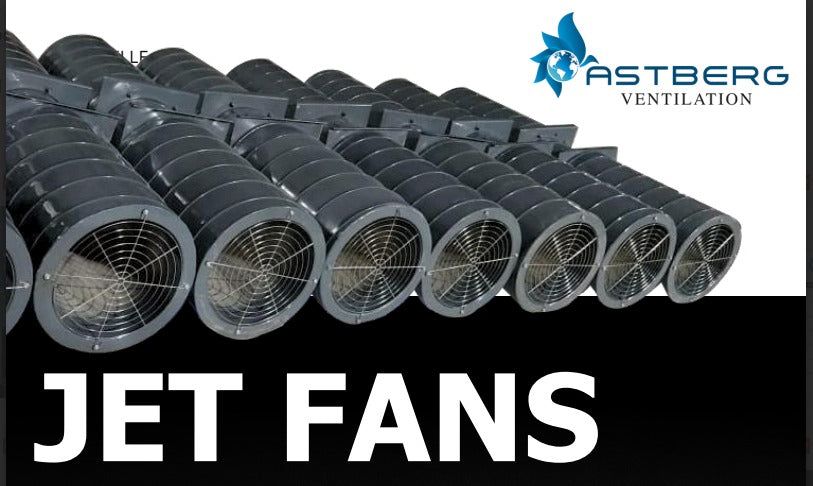

COMMERCIAL JET FAN- AJA 315 (4600 CMH)

Technical Specification for Fan Model:- AJA 315

1.CMH :- 4600
2. Velocity (M/s):- 16.4
3. Thrust Force (N):- 25
4. Fan Input Power (KW):- 0.75
5. Installed Power (KW):- 1.1
6. Voltage/Phase:- 400/3
7.Fan RPM:- 2850/1450
8. Pole:- 2P/4P10

9.DB (A) at 3m

FEATURES:-
1.Cost-effective and energy-efficient vs. ducted systems
2.Compact design optimizes space
3.Low noise due to silencers
4.Low maintenance and labor costs
5.Minimal pressure drop, reducing power requirement

Construction Highlights:-

1 .Casing:- Made from high-quality sheet steel with a powder-coated or painted finish for
 enhanced durability and corrosion resistance.

2.Impeller: Constructed from precision-balanced aluminium, ensuring long-term
 reliability and efficient airflow.

3.Mounting Brackets: Supplied with dual brackets for fast and secure installation.

4. Silencers: Each unit includes 2D silencers made of galvanized sheet steel (GSS) on
 both inlet and outlet sides as standard, significantly reducing noise levels.

5. Inlet Guards: Safety guards are pre-installed on both sides for added protection.
