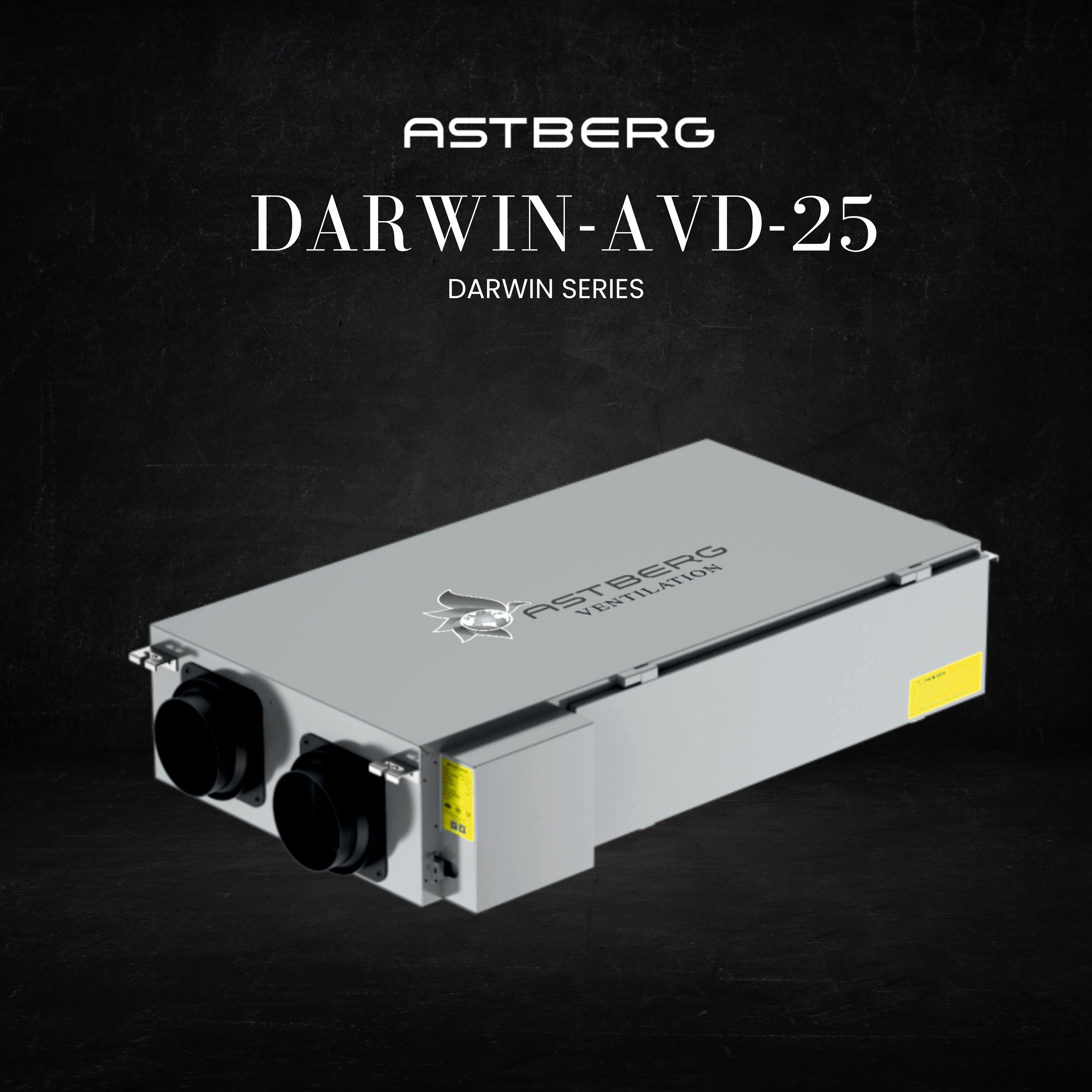

Astberg Darwin AVD-25

DARWIN-VF/A

Germany COOPER total heat exchange core, upgrade the new dimension of heat and cold precision control, solve the problem of indoor and outdoor temperature difference, so that the indoor temperature is always constant and comfortable state. CFD simulation flow to design, two-way increase air exchange, small wind resistance, high static pressure. Original sheet metal air duct structure design, not only increases the structure of the load-bearing, but also sound absorption Noise reduction, significantly reduce the crosstalk of fresh air and exhaust air, and improve the purification effect.

IFD Purification Module

Dynamic microparticle hunting module is to charge the dust microparticles and capture the charged microparticles in the hunting module. Gaseous molecular group cracking module is a thorough catalytic oxidation decomposition of formaldehyde, benzene, TVOC and other harmful pollutants, the end product of decomposition is carbon dioxide and water. No secondary pollution, no consumables, high efficiency and energy saving, long service life.

PERFORMANCE PARAMETERS:-

Model :- Darwin-AVD-25
Airflow (m³/h):- 250
Voltage (V):- 220
Power (W):- 110
Hydrostatic (Pa):- 280
Noise (dB):- 36
Tube size (mm):- Φ 150
Heat Recovery(%) :- 80-85
Purification Efficiency(%):- 99

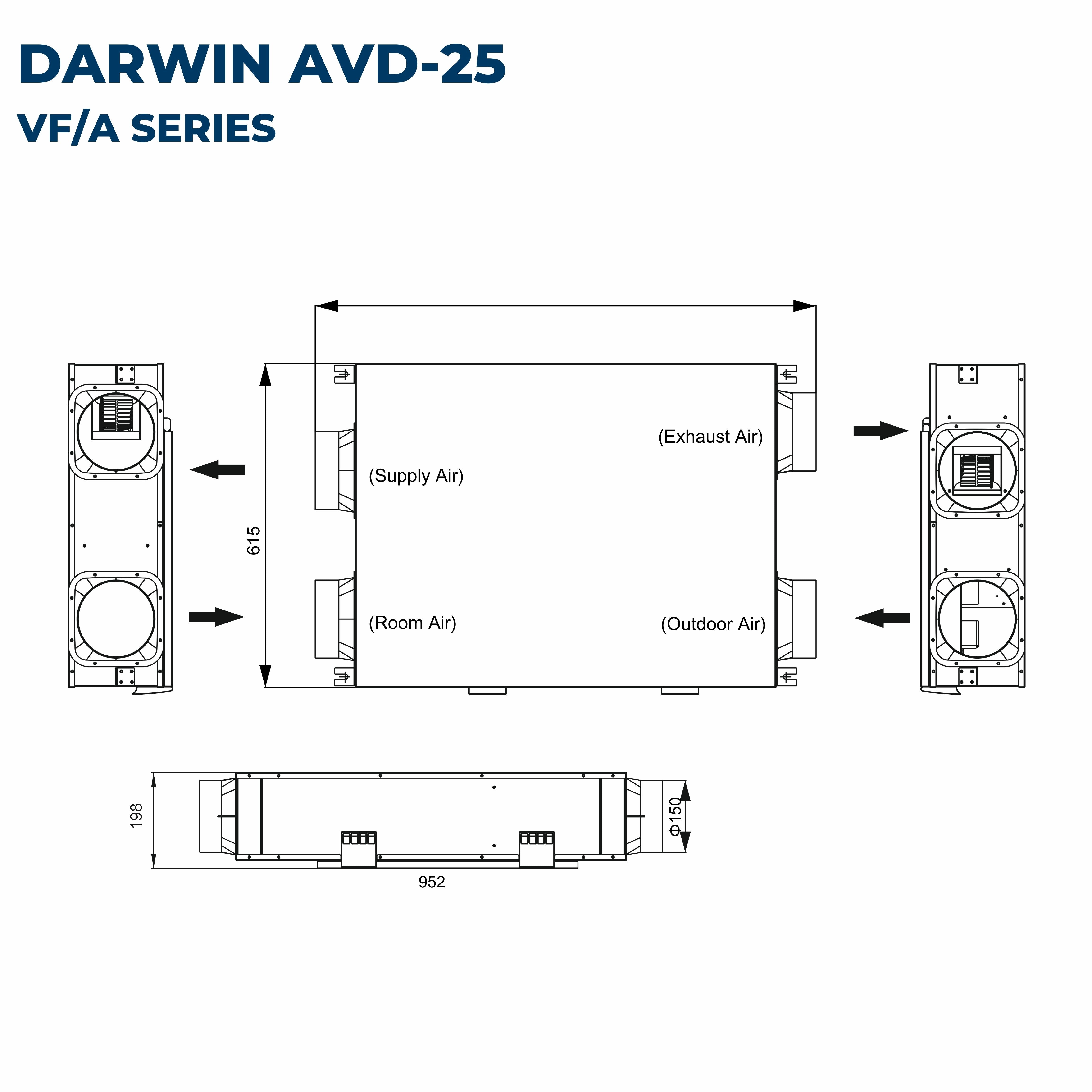

Fuselage Size(mm):- 952*615*198
