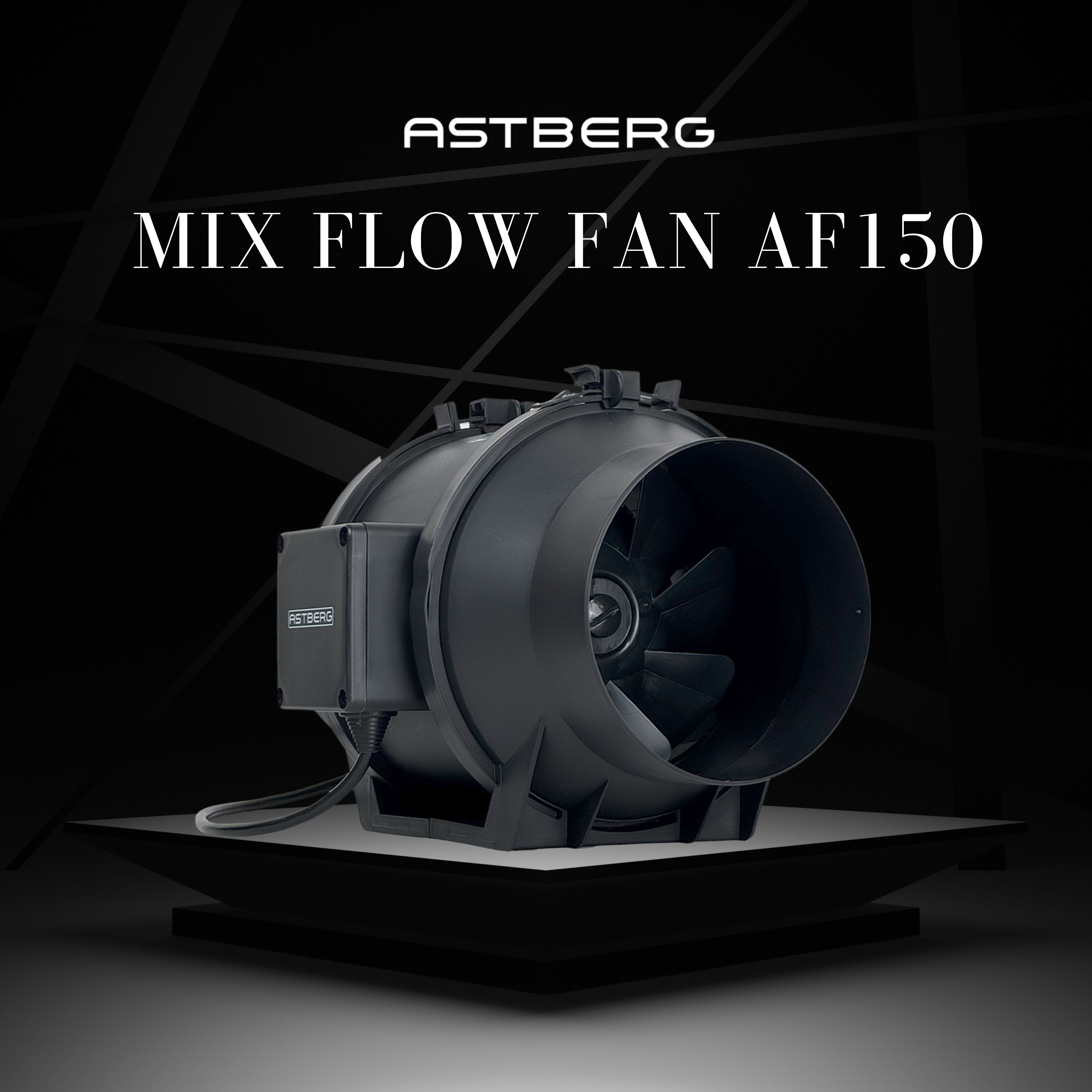

Astberg AF150 Silent Mixflow Circular Inline Duct Fan (150mm / 6”) | 530 m³/h | 311 CFM | Ultra-Quiet High-Performance Ventilation

Product Description:

The Astberg AF150 Luxe Silent Mixflow Inline
Fan is a high-efficiency duct ventilation system suitable for both
domestic and commercial properties. The 530 m³/h (311 CFM) airflow
capacity, its ultra-quiet operation, and durable ABS body ensure that
this fan is efficient in air circulation and features a sleek, compact
design. From bathrooms to kitchens, conference rooms, or
hydroponic environments, the AF150 provides even and hushed
ventilation with only mild energy needs.

Product Specifications:

• Model: Astberg AF150
• Size of Duct: 150mm (6)
• Max. Airflow: 530 m 3 /h (311 CFM)

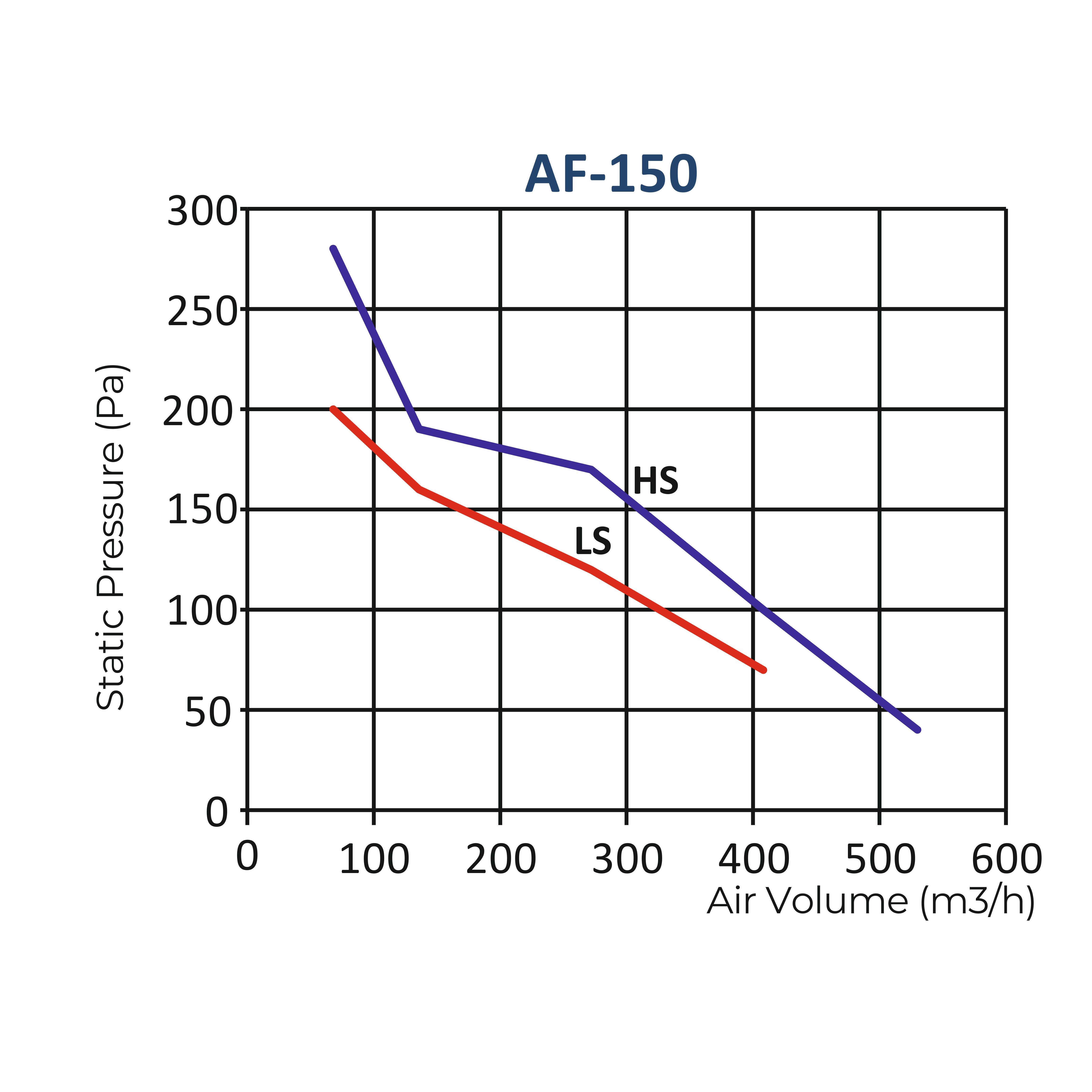

• Max. Pressure: 300 Pa
• Noise Level: 33 dB(A)
• Voltage : 220V/ 50Hz
• Net Weight: 2.6 kg
• Content: Full ABS Plastic (Light weighted & Sterling)
• Color: Black

How to Install this product?

• It is Constructed with snap-joint Fittings to provide fast and
  easy installation
• It works with the flexible ducting and rigid ducting
•  It can be attached at any axis upon the duct line
• Motor and impeller at the center point, where they can be
  easily removed and serviced without removing ducting
• They are combinable in series to increase the pressure of the
  airflow

Key Features:

• Ultra-Silent Mixflow Motor -Whisper-quiet 33 dB(A)
•  Energy Efficient - 530 m 3 /h airflow and low power consumption
•  Durable ABS Body Lightweight and strong with doubled insulation
• Snap-Joint Design -Simple to fix
  maintain High Flexibility Mounting- Can be mounted on any angle of
  the duct and can be series connected

Where to Use It?

Residential areas- kitchens, bathrooms, laundry
 2. Trade areas, retail areas, commercial areas ( offices, conference
rooms, hotels)
 3. Industrial purposes - warehouses, HVAC, renovation of a
workshop
 4. Grow tents and hydroponics set ups
 5. Common rooms - washrooms, gyms etc

Benefits of Astberg AF150:

1. Exceedingly quiet working to provide comfortable surroundings
2.  Tight, powerful and suited to both residential and commercial
   applications
3.  Swift to install and keep up with snap-joint fittings
4.  Energy efficiencies design lowers running cost
5.  Flexible fitment- adapts to any duct angle/position.

What makes AF150 a choice?
It blends silent sounds with great air flow and maintenance ease in one elegant package hence making it the smart choice on ventilation.

Tech Specs at a Glance
Feature Detail:
Duct Size 150mm (6")
Maximum Airflow 530 m³/h (311 CFM)
Static Pressure 300 Pa
Noise Level 33 dB(A)
Voltage 220V / 50Hz
Net Weight 2.6 kg
Material ABS Plastic (Double Insulation)
Color Black
Installation Snap-joint, flexible mounting
Enclosure Rating IP44 (Dust & Splash Proof)

FAQ (Real Questions. Real Answers.)
Q.1 Can this be used on intake, as well as exhaust?
Yes, hot air extraction and fresh air intake are both supported in the
AF150

 Q.2 How silent is the AF150?
Only 33 dB(A), and that shows how insensibly quiet it is, as at this
level it could be used in bedrooms, offices, and lounges.

Q. 3. Is it energy efficient?
The mixflow impeller design provides the greatest airflow whilst
using only low energy.

Q.4. Is it possible to install by myself?
 Yes, because of its snap-joint design, installation and maintenance is
fast.

Q.5 Is more than one unit able to be connected?
It is possible to install them in sequence and higher airflow pressure
can result..

Closing Line / Tagline
In a nutshell:
Astberg AF150 is a perfect combination of silence, power, and
smart ventilation.
