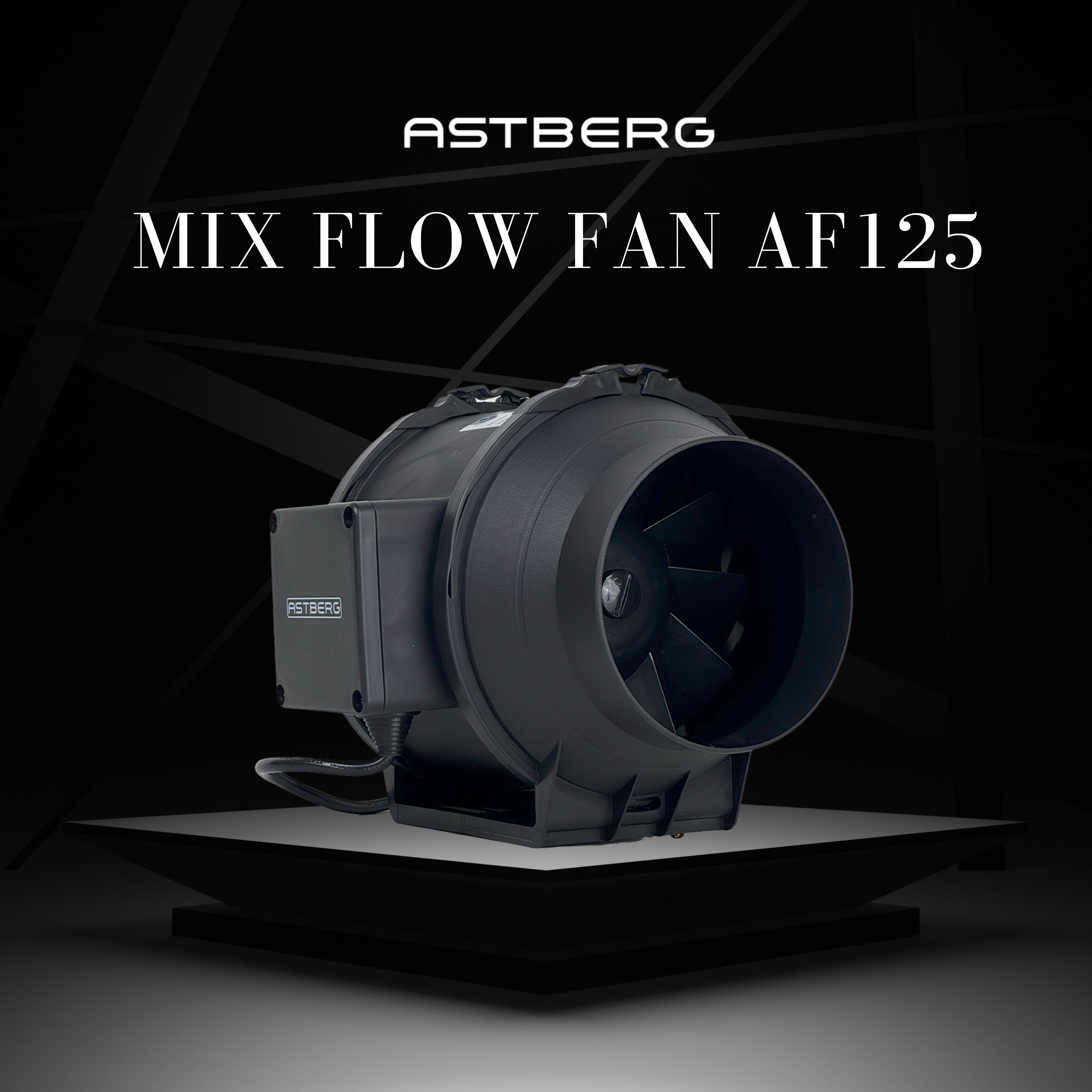

Astberg AF125 Silent Inline Exhaust Fan (125mm / 5") | 284 CMH | 167 CFM | Ultra-Quiet. High-Efficiency. Compact Power.

Breathe Better. Ventilate Smarter.

Product Description

The Astberg AF125 is a silent mix-flow inline duct fan that has been meticulously developed to offer the best airflow while remaining quiet. It provides maximum performance with minimal noise, with an output of 284 m³/h (167 CFM) and an operating loudness of only 31 dB(A).

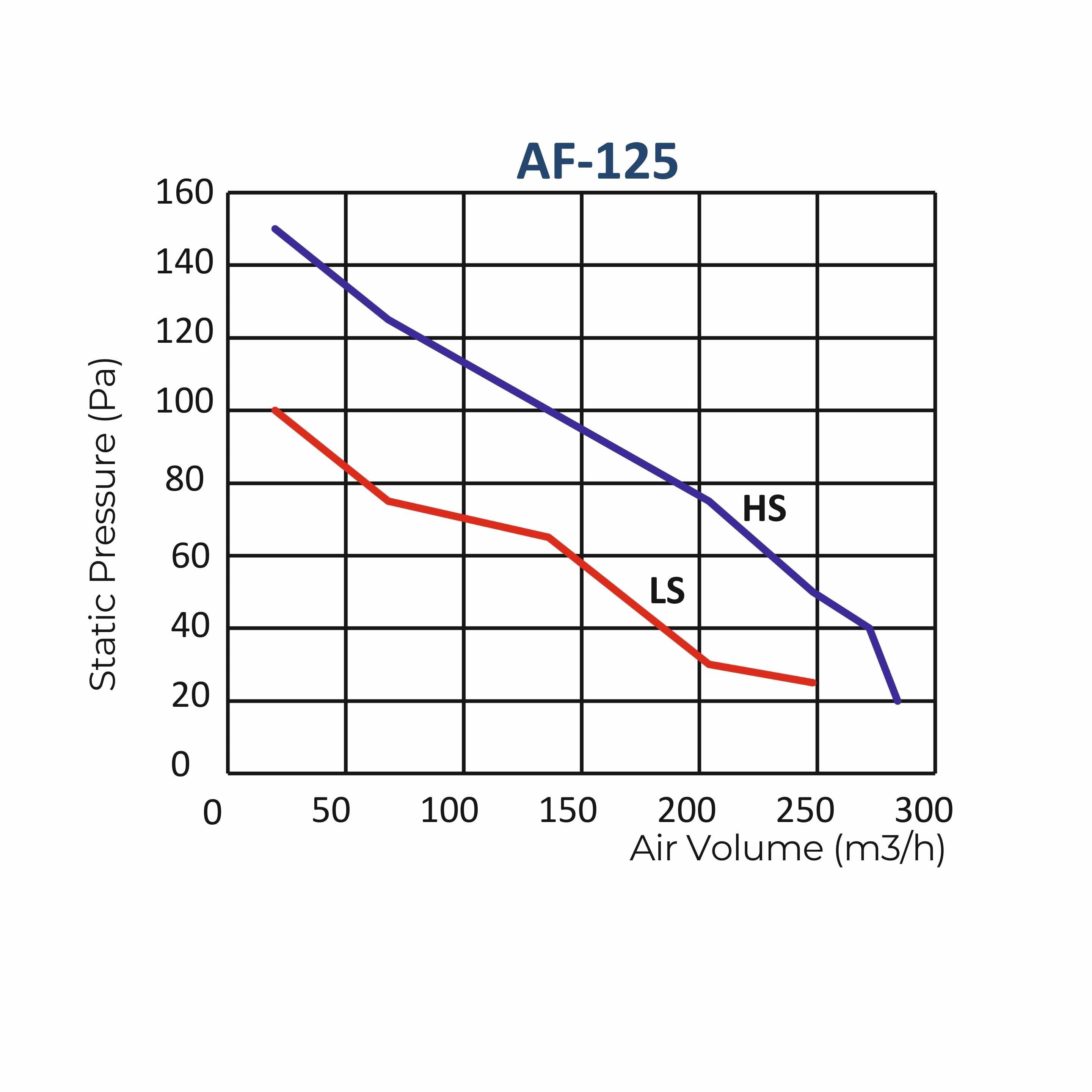

It is wide-duct capable, and its mixed-flow impeller design generates a high static pressure (159 Pa), which favors short duct work over lengthy runs or complex ventilation systems.

It contains a complete ABS plastic casing with multilayer insulation, making it lightweight but durable enough to withstand years of continuous use.

The speedy installation and low maintenance AF125 can be employed in both residences and light commercial vent requirements, especially where a gracious sense of stillness is silvered with gold.

Key Features

• High-Efficiency Motor – Moves 284 m³ per hour (167 CFM) at a high static pressure (159 Pa). KPM (Air Delivery and Pressure).
• Whisper-Quiet – Operates at 31 dB(A), quiet enough to hear a mild conversation. KPM (Acoustic Output).
• Mixed-Flow Impeller – Combines axial airflow and centrifugal pressure, adaptable to practically any duct layout. 800 (KPM Performance Design).
• Lightweight and Durable – ABS plastic body, doubly insulated for strength and safety. KPM Build Quality.
• Snap-Joint/Quick-Fit Fastening – Quick installation with a perfect seal. (KPM Ease of Installation).
• Any-Angle Mounting – Operates horizontally, vertically, or diagonally.
• Maintenance-Friendly – Motor and impeller can be removed without interrupting the ducting.
• Series Connection Ready – Connect multiple devices to meet higher airflow or pressure requirements.

Where to Use It

1. Modern living spaces, residential structures, and workplaces
2. Meeting rooms and conference halls
3. Hotels, hospitality establishments, and guest suites
4. Toilets, washrooms, and bathrooms
5. Kitchens and laundry rooms
6. Locked or inhabitable ducts

Benefits of This Model

1. Silent but powerful – Low noise with high airflow capacity.
2. Slim & Sleek – Fits in narrow duct holes.
3. Built to Last – Operates 24/7 with minimal maintenance.
4. Quick Assembly – No special equipment or professionals required.
5. Long life & safety – Double insulation and non-corrosive ABS housing.

Why Choose the AF125?

The AF125 provides enormous power in a small low-noise chassis, making it suitable for homes, workplaces, or even light commercial applications where efficiency and silence must coexist.

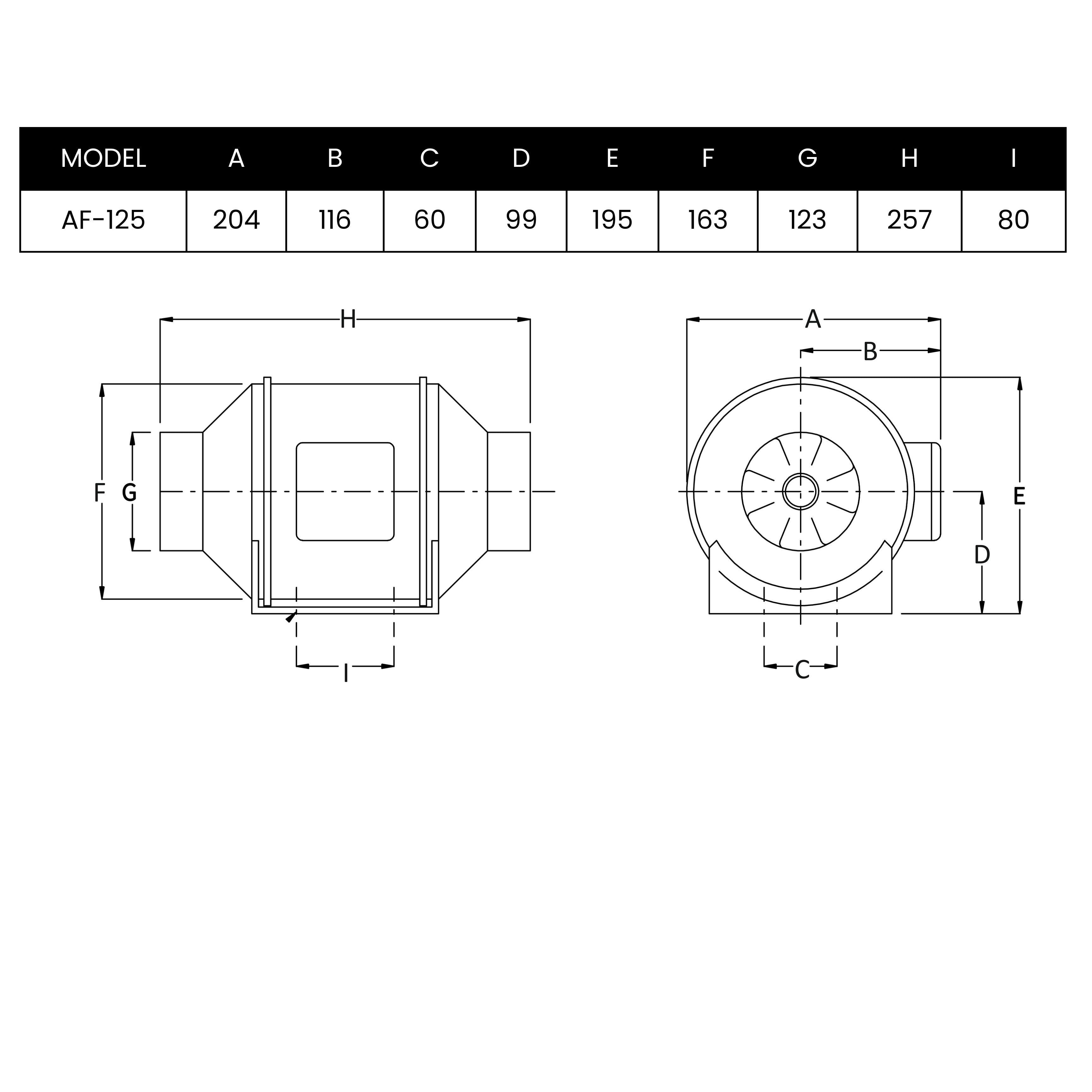

Tech Specs at a Glance

Compact form. Powerful performance.

FAQ – Real Questions. Real Answers.

Q: Is this a suitable intake and exhaust fan?
A: Yes, it can remove stale air & provide fresh air.

Q: Is cleaning easy?
A: Yes, the motor can be changed without ducting dismantling due to the snap-joint design.

Q: Can I use it all day?
A: Yes, it can be used 24/7 without performance degradation.

Q: Does it fit in a tight duct run?
A: Yes, due to its small form factor and multidirection mounting, it can.

Closing Line / Tagline

In a nutshell: Silent. Compact. Reliable.
In a small-to-medium duct system, when you require the optimum combination of power, low noise, and service life, the Astberg AF125 is the bright choice.
